SMOKE CONTROL, POST FIRE SMOKE PURGE, & MECHANICAL TEST & INSPECTION PANELS
SMOKE AND FIRE PANELS
YOU CAN TRUST.
Automation Displays’ Panels have been protecting human life and property since its founding. Our Smoke Control, Smoke Purge, and Mechanical Test and Inspection Panels are built to last with quality materials and certified expertise. Our proprietary micro-controller makes connecting our panels to your Building Automation System seamless and simple. With lifetime remote technical support, a panel from ADi is a panel for life. Contact a qualified sales representative today and learn more about the power of unmatched accommodation.
CERTIFIED QUALITY. MODERN DESIGN.
WHAT THEY'RE SAYING
“Working with ADi has always been a positive experience. Their industry knowledge and collaboration efforts make custom projects easy to navigate and install. ADi does a fantastic job accommodating design challenges and partnering with Kain Energy to reach a positive project outcome. I would not hesitate to recommend them for a Smoke Control Project.”
Cary Kain
KAIN ENERGY CORP.
SMOKE CONTROL
Each of our smoke control panels offer a clear indication of status and operation of life safety devices such as fans, dampers, motorized doors, etc. Your custom smoke panel will be designed to meet your local fire code and AHJ requirements. There are no limitations to size, quantity of controls, colors, etc. and our panels offer I/O density that cannot be beat!
Our Smoke Control Panels are designed to meet the UL508, UL864, UOXX, and UUKL requirements. We include the following UL required panel devices, lamp test pushbutton, panel enable key switch, panel power on LED, Communications Fault LED, System Fault LED, Audible Alarms for fault indication, key switch for silencing, and firmware for alarming. Our trusted control panels are crafted with quality and care customized for you.
FIRE ALARM GRAPHIC ANNUNCIATOR
Our Fire Alarm Graphic Annunciators have been assisting during fire emergencies since 1975. An ADi fire annunciator assists an operator in quickly detecting where a fire or alarm has occurred with in your facility, building, campus, and more. This reduces the response time during an emergency.
Our fire alarm graphic annunciator is a smart investment in saving lives and property. Our clear and precise design layout of your facility floor plan or campus make customization easy and accessible. Our engineers work directly with you from start to finish to ensure accuracy and complete satisfaction.
We offer UL508, UL864, UOXX, and UUKL listed panels to meet all code requirements. UL listed fire alarm panels manufactured by ADi can be used with any UL Listed fire alarm system. The annunciator LEDs can be wired to terminal blocks or LED driver cards.
POST FIRE PURGE
Our Smoke Purge Panels assist to get you back up and running quickly after a fire emergency by communicating directly into your Building Automation System (BAS) using a wide variety of protocols. Post Fire Purge Panels provide a cost effective means of purging your facility of smoke after the fire has been diminished.
Our engineering experts design custom graphics for complete representation of the facility, building, campus, and more being serviced. An ADi panel is designed specific to your industry specifications with no limitations to color, size or components. ADi offers relay logic and PLC based panels for smaller sites without a building automation system.
SPECIAL JURISDICTION & CUSTOM DESIGN
With over 50 years of industry heritage and extensive experience working globally, ADi understands a wide variety of local jurisdiction with a robust design process to ensure your panel meets your code requirements. ADi is your trusted partner for all special jurisdiction and customization capabilities.
Special Jurisdictions may include but are not limited to Mechanical and Inspection Panel requirements, unique key specifications, backup power, tamper proof security door, custom enclosure sizing, and more.
Custom Designed Solutions. Industry Expertise.
FSCS DESIGN GUIDE
FIREFIGHTER'S SMOKE CONTROL STATION
Frequently found in large community centered buildings such as shopping centers or high rise buildings, this powerful and effective smoke control system protects human life and material property.
Through simplicity and unmatched accommodation, ADi is your trusted partner for custom solutions built to last.
Unmatched Accommodation. Simple Integration.
The smoke control panel is intended to be installed in conjunction with an engineered smoke control system. This system is typically a UL864-UUKL Listed Fire Alarm System (FAS,) or UL864-UUKL Listed Building Automation System (BAS.) It is also to be installed in conjunction with heating-ventilating-air conditioning (HVAC) equipment. This network of panels and equipment forms a clear strategy to control the flow of smoke during a fire. These guidelines are in accordance with NFPA 92, "Standard for Smoke-Control Systems," 2012 Edition.
The FSCS (Fire Fighters Smoke Control Station) is intended to provide the necessary manual control switches and status indicators for the facility equipment performing smoke control applications. This function and the interconnection to other smoke-control equipment, as well as HVAC equipment, is described in the installation documents provided by the FAS or BAS manufacturer. Each Smoke Control Panel is custom manufactured by Automation Displays, inc. to meet the requirements of your unique project.
NON-DEDICATED.
.png)
Non-dedicated systems provide the building HVAC function under normal conditions and provides a smoke-control objective during a fire alarm condition.
DEDICATED.
.png)
A system which is normally inactive and is used exclusively for the purpose and smooke control.
Your Trusted FSCS Panel Partner.
SMOKE CONTROL PANELS
PANEL POWER LED
AUDIBLE ALARM

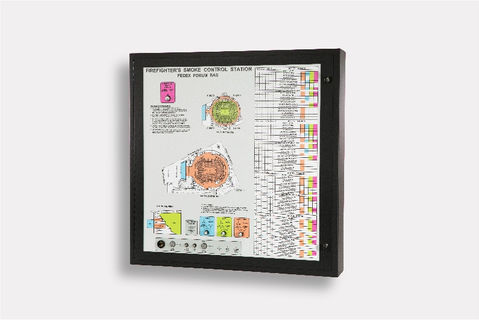

GRAPHIC PANEL DOOR
"PANEL ENABLE" SWITCH
OVERRIDE CONTROL

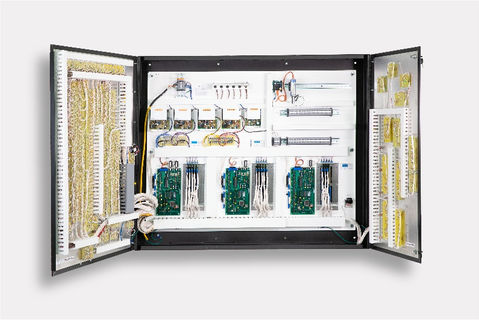

Smoke control panels come mounted to an enclosure, and panel devices are wired to terminals or UUKL Listed electronics. Model series of the panel defines the UUKL Listed System interface.
Panel Power LED confirms power to the panel is present. Color of LEDs varies by local building code. These guidelines are in accordance with UL864 and UUKL Listed standards.
Audible Alarm is to activate when any Fault LED or other Alarm occurs. Alarm Silence key switch will cancel the Audible alarm. If the control panel is behind a lockable security cover, the silence switch is not required to be a key switch.

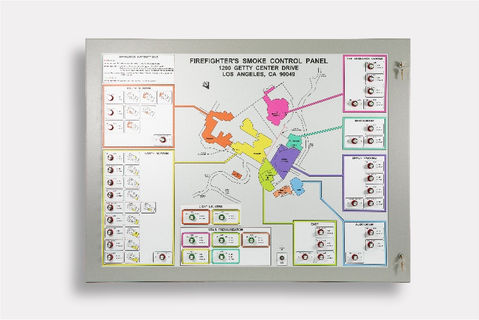

Graphic panel door depicts controlled smoke control equipment and areas served. LEDs (light emitting diodes) indicate status of the equipment, alarms, or zones. Typical LED groups are "On-Off-Fault," "Open-Close-Fault," and "Purge-Pressurize-Off".
"Panel Enable" key switch or "Firefighter's" key switch is provided to limit access to the operation of other switches on the panel. "Panel Enable" key switch must be activated so other switches on the panel will operate.
Override control is provided by switches for zones, fans, dampers, doors, or other smoke control equipment. Indicator lamps/ push buttons illuminate all status indicators and activate any audible alarms.
HIGH RISE BUILDINGS
Pressurized stairwells and floor exhaust systems are just two of the features in a high rise building's smoke control system.
Rest assured the occupants of your multistory building will be safe with an Automation Displays, inc. smoke control system.
Every smoke control panel built at ADi is centered around the requirements set by local building codes and on the occupancy of the building.
ATRIUMS, MALLS & LARGE AREAS
From warehouses and arenas to ballrooms and convention centers, smoke control panels in large areas ensure the safety of their occupants.
The intent is to hold smoke six feet or more above floor level to allow occupants a clear view to exits and the time needed to exit the building.
Typical Smoke Control Systems will employ large exhaust fans and/or air handling units. Other air sources may include opening doors or windows.
DETENTION FACILITIES
In a building where you cannot simply open a window to let smoke out, the emphasis of installing a high quality control panel is imperative.
Institutional Type 3 Occupancy refers to facilities where the occupants are not free to leave the building.
By holding smoke six feet or more above floor level, a detention center smoke control system allows prison staff the time to safely escort detainees from the building.
